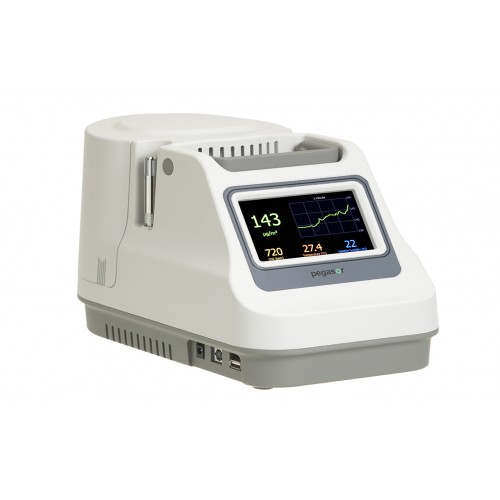

Pegasor IAQ
Pegasor IAQ - The Ultimate Indoor Air Quality Monitor for PM, CO2, Temp & Humidity
Pegasor provides unique fine particle sensor products. Our products are based on diffusion charging of particles, technology capable of covering all fine particle monitoring applications. The IAQ is a portable battery operated monitor suitable for indoor use and measuring particles down to 5nm and up to 3 microns. Output is available as particle number (p/cm3), Particle surface area (m2/cm3) or PM2.5 mass concentration (ug/m3
Sensor type Diffusion charging operating principle
Measuring range 0.001 – 200 mg/ m3
Maximum responsive particle size 0.01 – 2.5 µm Particle size cutter PM2.5
Sampling mode Built in suction pump Flow rate 3 L/min
Resolution 0.001 mg/m3 (with 1 min integration time) 0.1% of reading
Sampling rate 1/sec
Operation interface 4,3” Color display touch screen
Time constant 1-300 s adjustable by user
Battery operation time 10h - 24h -100h (depending of the sampling rate)
Battery type Li-ion AC power supply
External power supply, 100 – 240 VAC, 50/60 Hz
Operating temperature range 0 - 50 o C
Storage temperature range -20 – 60 o C
Communication interface Ethernet with Modbus protocol, optionally wireless (3G/4G modem)
Service period 12 months, depending environment
Configurable to PM, PN or PA measurements
Temperature and relative humidity measurements, with Vaisala HUMICAP® sensor CO2 concentration measurement, with Vaisala CARBOCAP® sensor
Analog output mode 0 -10 V or 4 – 20 mA Analog output range Adjustable by user
Alarm output, for different alarms Alarm setting point range
Built-in data storage 1 GB Data storage type
Flash memory Storage interval 1s – 1h Maximum data points > 1,000,000
Dimensions (wxhxl) 150 x 200 x 300mm
Weight < 1.5 kg
GPS for location indicator Yes,
Optional Connections USB in, USB out Bluetooth WLAN , optional Ethernet 3G/4G, optional Analog (V and mA)
| I want to measure | Nano Particles, Lung Deposited Surface Area [LDSA] |
|---|---|
| Products | Particle Monitors,Portable Monitors |
| Applications | Indoor Air Quality,Personal Exposure |
